Wholesale 40mm 220V 3000 Rotary Servo Motor

Home / Product / Servo Motor / G3 Series 40mm 220V 3000 Rotary Servo Motor With Oil Seal

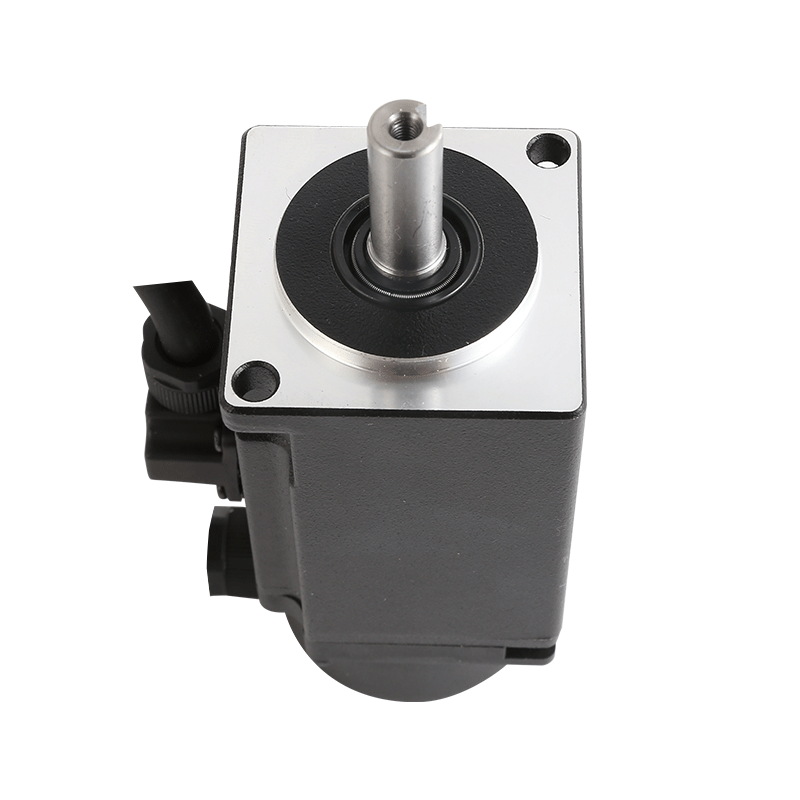

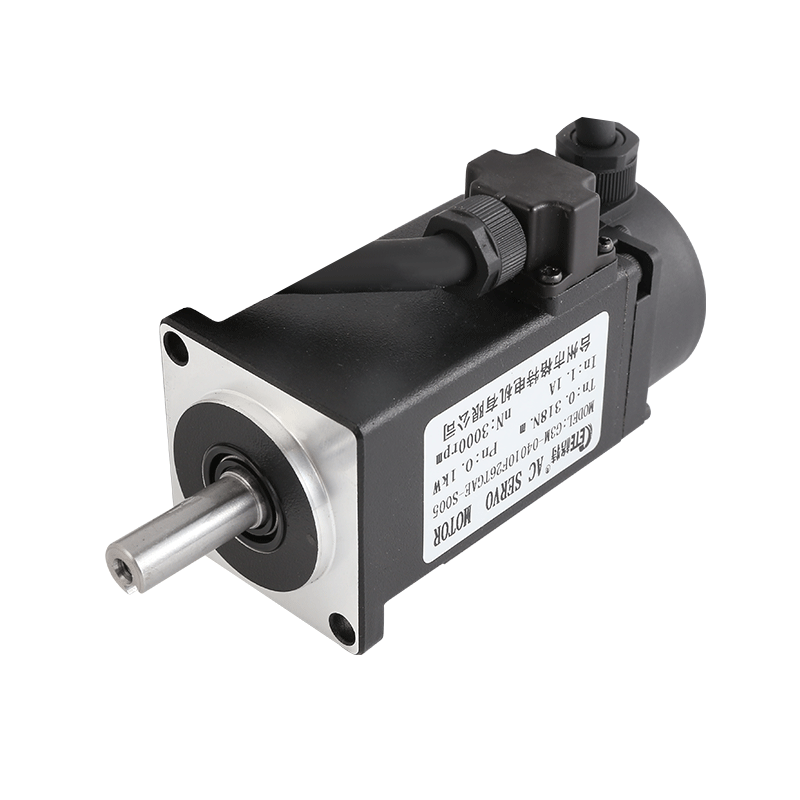

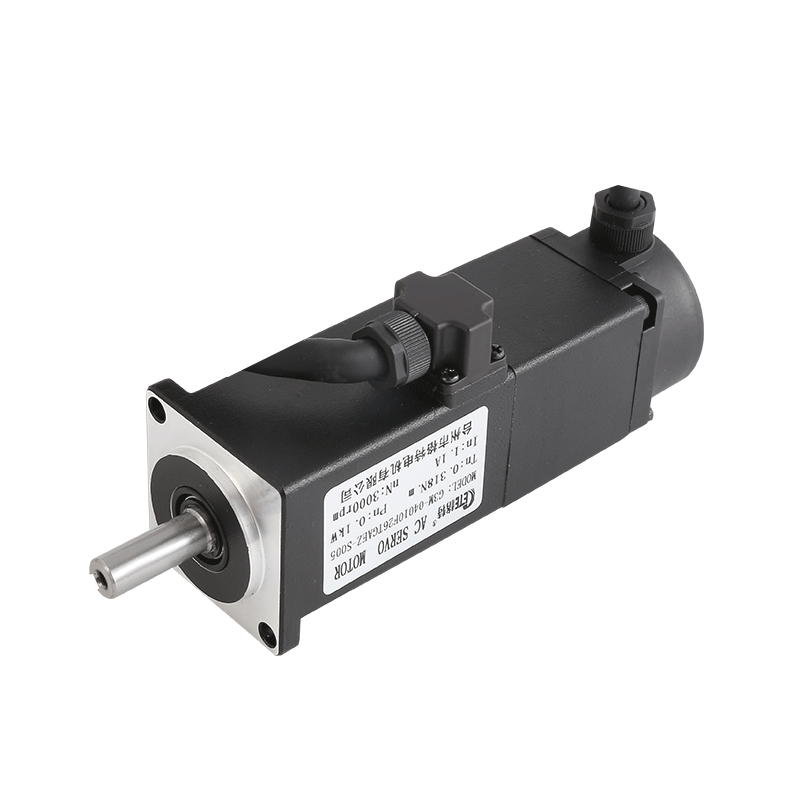

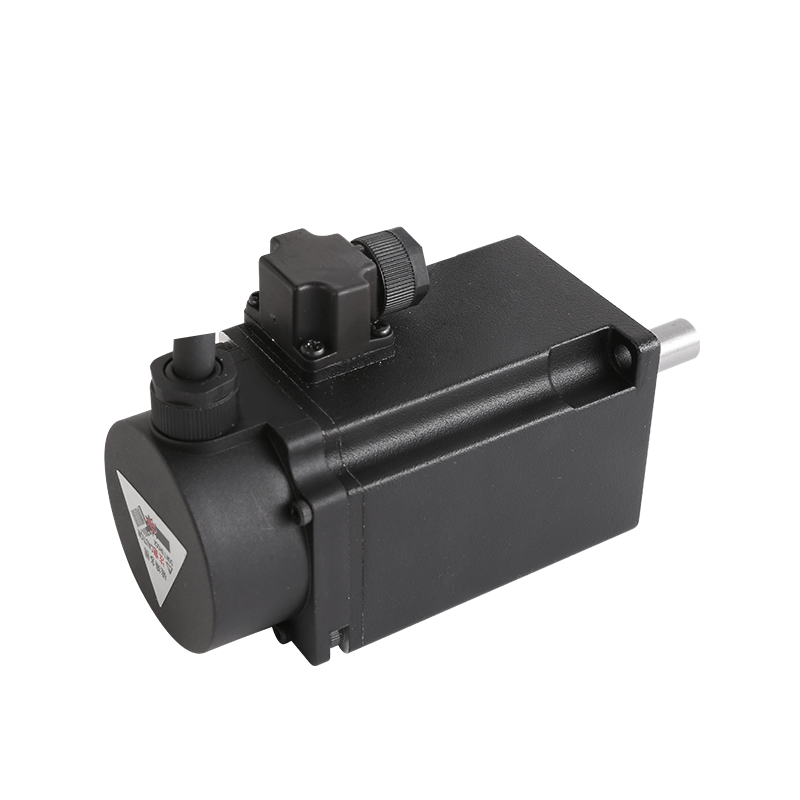

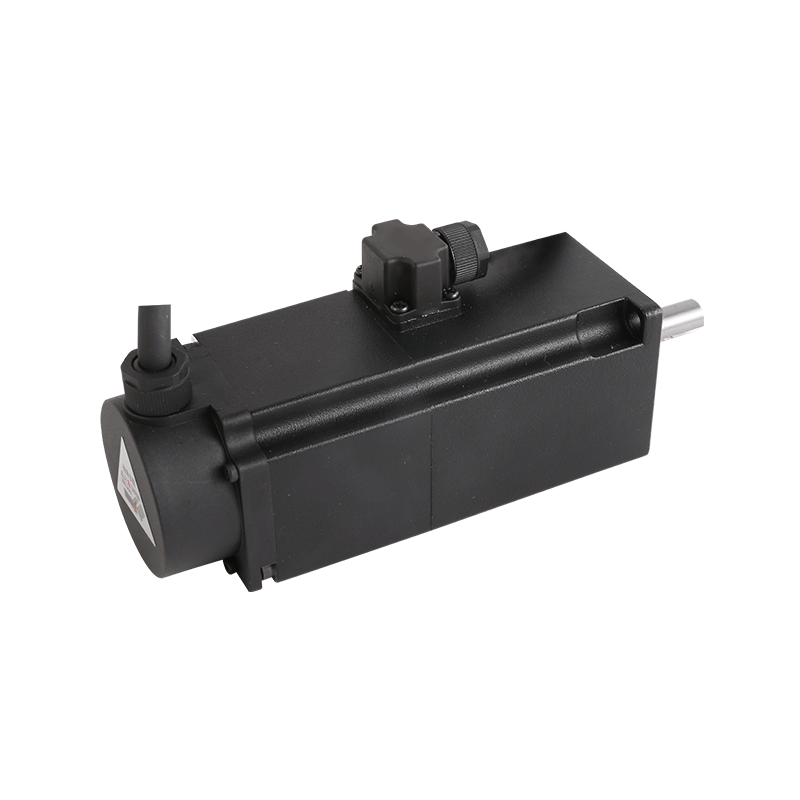

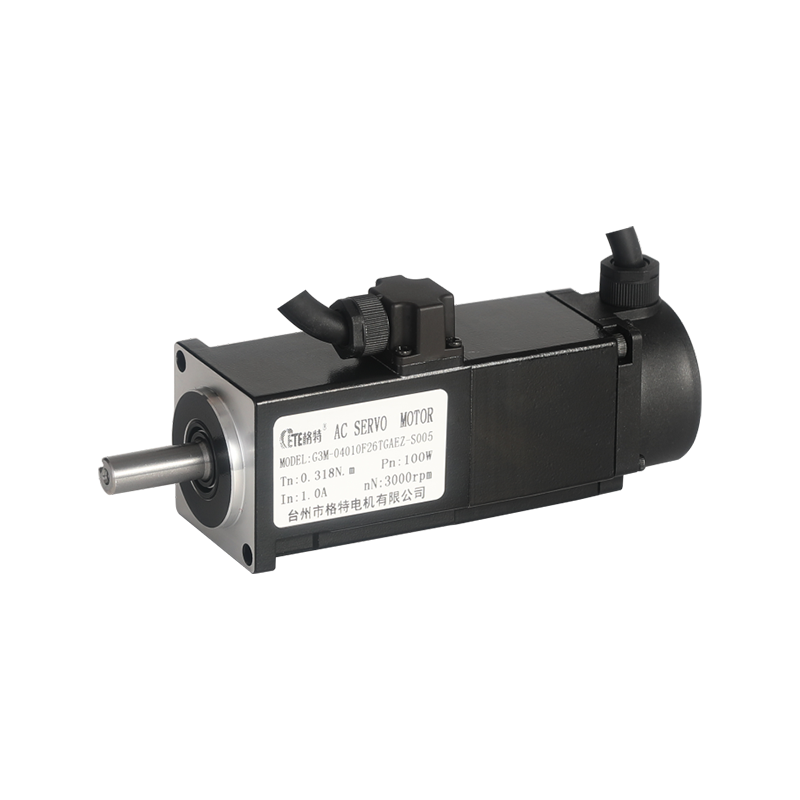

G3 Series 40mm 220V 3000 Rotary Servo Motor With Oil Seal

G3 Series 40mm 220V 3000 Rotary Servo Motor With Oil Seal

G3 series 40mm 220V 3000 rotary oil seal servo motor is a kind of high performance motor. The advantages and features of this product are as follows:
1. Unique electrical design: G3 series servo motor adopts a unique electrical design, which can effectively improve its control accuracy and performance stability, so as to meet the needs of various high-performance control systems.
2. High-precision positioning control: the servo motor has high-precision positioning control ability, which can achieve high control accuracy and meet the requirements of high-precision motion control system.
3. Efficient thermal management: The servo motor adopts special heat dissipation design and high-quality electrical materials, which has excellent thermal management effect and low heat during operation, which can improve the service life of the motor.
4. High-speed and efficient speed: G3 series servo motor adopts advanced speed control technology, which can achieve high-speed and efficient speed control and improve its work efficiency and accuracy.
5. Fully enclosed design: This series of servo motor adopts fully enclosed design, equipped with oil seal, effectively protect the internal parts of the motor, while its own dustproof and waterproof performance is good, can be used in more environments.
GETE G3 series 40mm 220V 3000 rotary belt oil seal servo motor has the advantages of high performance, high precision, high efficiency, good durability and so on. It is a high-performance motor with stable and reliable performance.
Contact Us
  • Technical Parameters

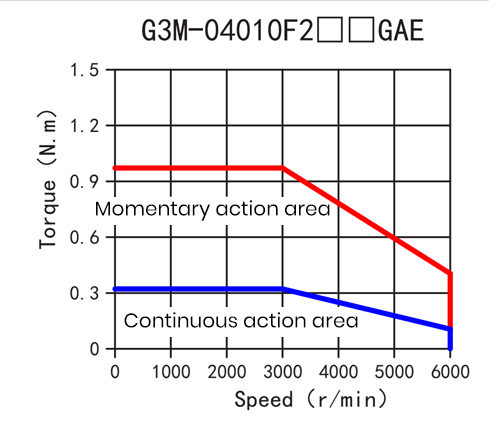

  • NT Characteristics

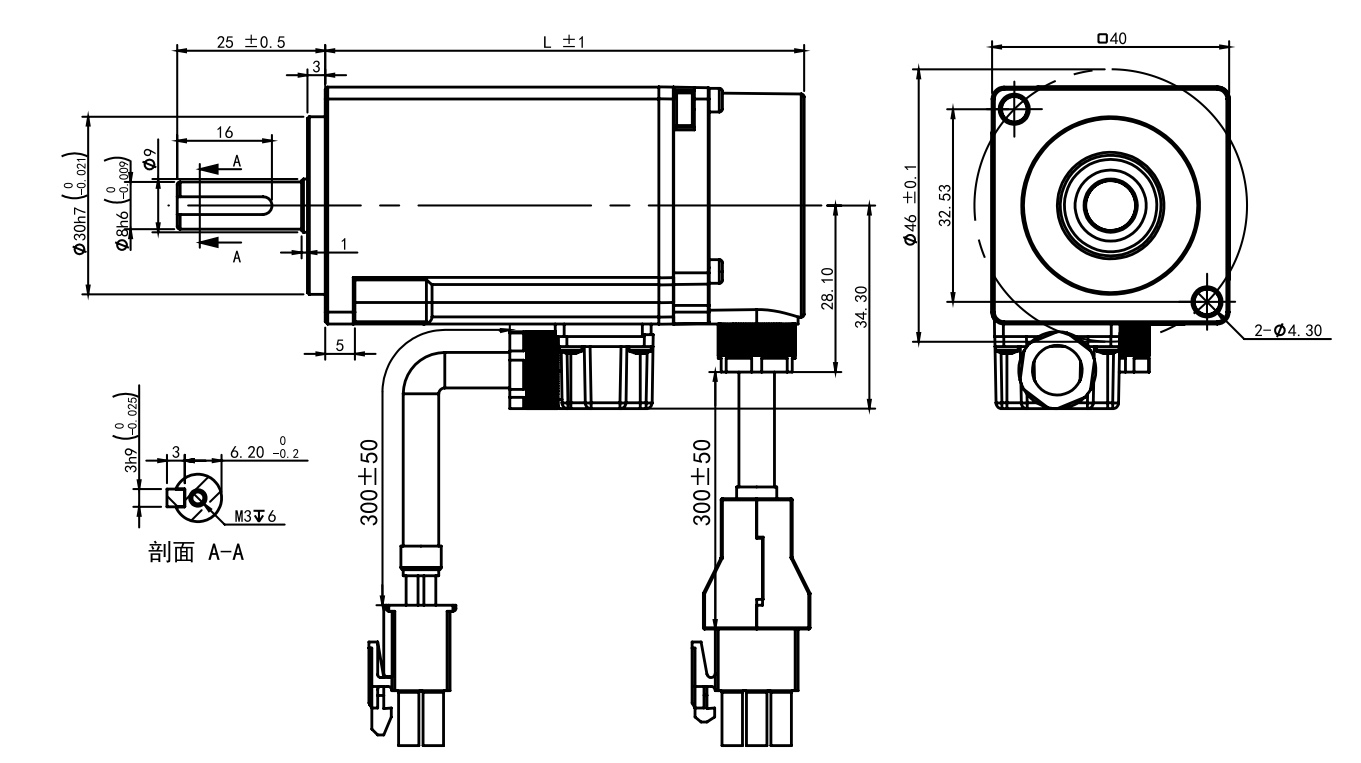

  • Dimensions
  • Motor model
    Unit
    G3M-04010F2□GA
    Rated power
    W
    100
    Rated voltage
    V
    220
    Rated current
    Arms
    1.1
    Instantaneous maximum current
    Arms
    3.5
    Rated torque
    N. m
    0.318
    Instantaneous maximum torque
    N. m
    0.954
    Rated speed
    rpm
    3000
    Maximum speed
    rpm
    6000
    Back EMF
    V/Krpm
    23
    Torque constant
    N.m/A
    0.29
    Wire resistance
    Ohm
    20.6
    D axis inductance
    mH
    10.5
    Q axis inductance
    mH
    12.4
    Electrical time constant
    ms
    1.02
    Rotor inertia
    X10-4kg·m2
    0.066
    With brake 0.07
    Quality
    kg
    0.4
    With brake 0.6
    Fuselage length L
    mm
    80.8
    With brake 114
    Brake static friction torque
    N.m
    Above 0.38
    Rated voltage
    V
    DC24V±2.4
    Rated current
    A
    0.3
    Attract time
    ms
    Below 50
    Release time
    ms
    Under 20
    Release voltage
    V
    1 or more
    Number of poles
    10
    Encoder resolution
    17bit/23bit
    Insulation class
    f
    Degree of protection
    IP65
    Use environment
    Temperature: -20°C~+40°C (no freezing) Humidity: <90%RH (no condensation)
    Power line and brake line
    VU    W PE
    BRK+    BRK-
     2  1  3  4
    1            2
    Absolute encoder line
    PE   E-   E+   SD-   OV   SD+   5V   /   /
    1     2     3      4      5      6         7   8   9

About Gete

Get to know us now

Taizhou Gete Motor Co., Ltd. is a high quality G3 Series 40mm 220V 3000 Rotary Servo Motor With Oil Seal supplier and wholesale company. The company has strong scientific and technological strength, advanced design concepts, advanced production facilities, high-precision testing equipment, and perfect modern management. The company is developing steadily and focusing on the accumulation of independent intellectual property rights, which are currently used for 12 utility model patents.
The high-tech products developed and produced by our company: 5 pairs of pole servo motors, high-speed servo motors, ultra-high-resolution servo motors, multi-environment servo motors, etc. will bring new vigor and vitality to industrial automation. Products are widely used in CNC machine tools, embroidery, engraving, textile, printing, packaging and other manufacturing industries, aviation industry, new energy automobile industry and other robotics and other automation industrial control fields. The company adheres to the business philosophy of "pragmatic innovation, honesty and trustworthiness, and excellence", and continues to create and change infinitely as always.

Related ProductsAdd our products to weekly lineup

More Information About G3 Series 40mm 220V 3000 Rotary Servo Motor With Oil Seal

Introducing the 40mm 220V 3000 Servo Motor with Rotary Function and an Innovative Oil Seal Design – a cutting-edge solution for your motion control needs.

Key Features:

1. High-Precision 40mm Servo Motor:

The 40mm 220V 3000 Servo Motor is a compact and powerful solution for precise motion control applications. With a frame size of just 40mm, it offers a compact footprint while delivering robust performance. Operating at 220V, this servo motor is designed to provide reliable and consistent operation, ensuring that your machinery runs smoothly and efficiently.

2. 3000 RPM of Powerful Rotation:

This servo motor boasts an impressive speed of 3000 RPM (Rotations Per Minute), making it suitable for a wide range of applications that require rapid and precise motion. Whether you need to achieve high-speed positioning or maintain smooth and continuous rotation, this motor is capable of meeting your requirements. Its high RPM rating ensures that it can handle dynamic motion profiles with ease.

3. Rotary Capability:

The 40mm 220V 3000 Servo Motor is equipped with rotary functionality, making it an ideal choice for applications that require rotational motion. Whether you're driving a conveyor belt, a turntable, or any other rotary mechanism, this motor can provide the necessary torque and accuracy for your specific needs. Its rotary capability opens up new possibilities for innovative solutions in various industries.

4. Oil Seal for Enhanced Durability:

What sets this servo motor apart is its integrated oil seal design. This innovative feature enhances the motor's durability and longevity by preventing the ingress of dust, moisture, or contaminants that can lead to wear and damage over time. The presence of the oil seal reduces the need for frequent maintenance, saving you valuable time and maintenance costs while ensuring the motor's reliability in challenging environments.

5. Precise Positioning and Control:

The 40mm 220V 3000 Servo Motor is equipped with advanced servo control technology, allowing for precise positioning and control. Whether your application demands high-precision positioning or dynamic motion profiles, this motor delivers exceptional performance. Its ability to maintain accuracy under varying loads and conditions ensures that your machinery operates with precision and consistency.

6. Wide Range of Applications:

The versatility of this servo motor makes it suitable for a broad spectrum of applications. Its compact size and powerful performance make it an excellent choice for industries such as robotics, conveyor systems, CNC machinery, automation processes, and more. Whether you require high-speed motion or intricate positioning, this motor can adapt to your specific needs.

7. Easy Integration:

We understand the importance of a seamless integration process, which is why the 40mm 220V 3000 Servo Motor is designed for easy installation into your existing systems. It comes with various mounting options and connectors, simplifying the setup process and ensuring compatibility with your automation infrastructure.

8. Exceptional Reliability:

Built with a focus on quality and reliability, this servo motor is engineered to operate consistently under demanding conditions. Its robust construction and integrated protection features ensure that it can withstand the rigors of industrial environments, providing you with peace of mind regarding its performance and longevity.

Our this 40mm 220V 3000 Servo Motor with Rotary Function and Oil Seal is a high-performance solution tailored to meet your motion control requirements. Its combination of compact size, powerful rotation, rotary capability, and innovative oil seal design makes it an excellent choice for a wide range of applications where precision, durability, and ease of integration are paramount. Experience the difference that this servo motor can make in your machinery and automation projects, and elevate your motion control capabilities to new heights.
