High-Precision 80mm 220V Medium Inertia Servo Motor

Home / Product / Servo Motor / G3 Series 80mm 220V Medium Inertia Servo Motor With Keyway

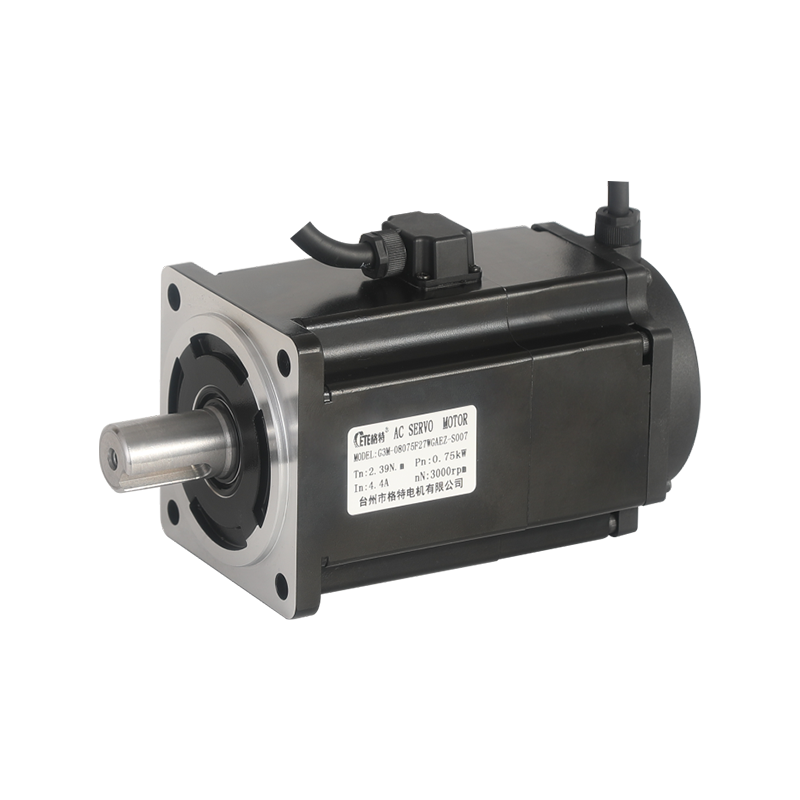

G3 Series 80mm 220V Medium Inertia Servo Motor With Keyway

G3 Series 80mm 220V Medium Inertia Servo Motor With Keyway

The main features and advantages of our G3 series 80mm 220V medium inertia servo motor with keyway:
1. Medium inertia design, with high stability and control performance;
2. With keyway design, easy to connect and drive, suitable for all kinds of transmission systems;
3. High performance power, can complete high load, high-speed control tasks;
4. High-precision control system, can achieve accurate speed, position, torque control, suitable for high-precision control system;
5. High reliability and durability, using high-quality electrical components and mechanical components, suitable for a variety of intermittent cycle motion applications.
GETE G3 series 80mm 220V medium inertia servo motor with keyway is a high performance, high precision, high efficiency motor, suitable for a variety of high load, high speed, high precision control system.
Contact Us
  • Technical Parameters

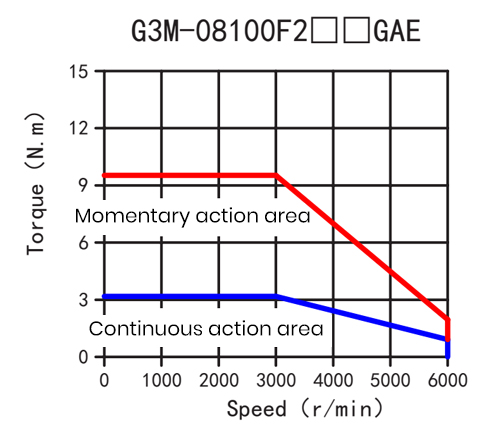

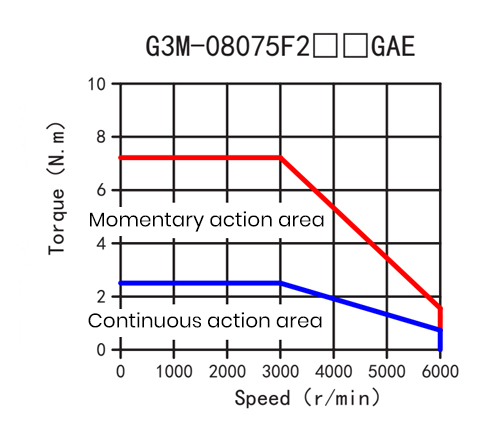

  • NT Characteristics

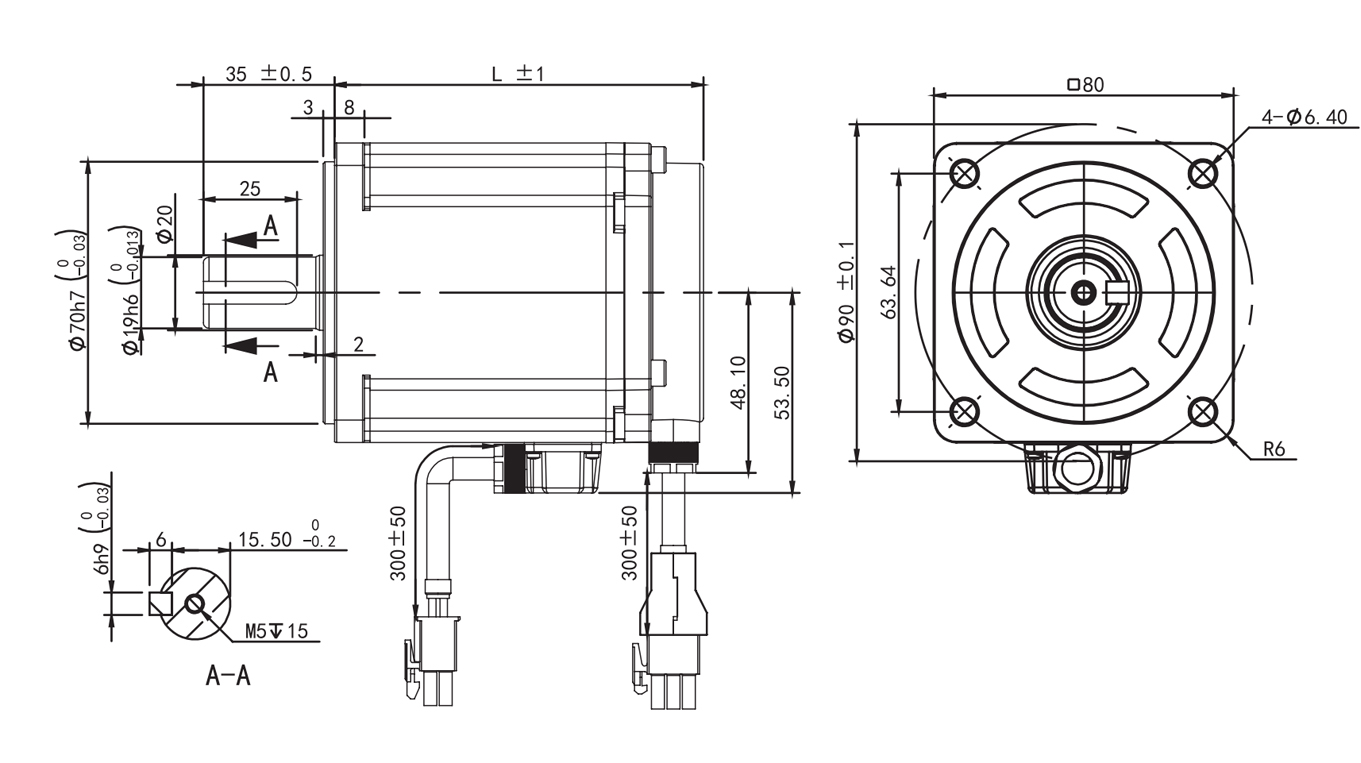

  • Dimensions
  • Motor model
    Unit
    G3M-08075F2□GA
    G3M-08100F2□GA
    Rated power
    W
    750
    1000
    Rated voltage
    V
    220
    220
    Rated current
    Arms
    4.4
    5.8
    Instantaneous maximum current
    Arms
    13.8
    18.1
    Rated torque
    N. m
    2.39
    3.18
    Instantaneous maximum torque
    N. m
    7.17
    9.54
    Rated speed
    rpm
    3000
    3000
    Maximum speed
    rpm
    6000
    6000
    Back EMF
    V/Krpm
    34
    34
    Torque constant
    N.m/A
    0.54
    0.55
    Wire resistance
    Ohm
    1.08
    0.73
    D axis inductance
    mH
    2.1
    1.4
    Q axis inductance
    mH
    2.5
    1.7
    Electrical time constant
    ms
    3.89
    3.8
    Rotor inertia
    X10-4kg·m2
    1.48
    1.97
    With brake 1.78
    With brake 2.27
    Quality
    kg
    2.1
    2.5
    With brake 2.8
    With brake 3.2
    Fuselage length L
    mm
    98.5
    111.5
    With brake 132.5
    With brake 145.5
    Brake static friction torque
    N.m
    Above 3.8
    Rated voltage
    V
    DC24V±2.4
    Rated current
    A
    0.5
    Attract time
    ms
    Below 70
    Release time
    ms
    Below 30
    Release voltage
    V
    1 or more
    Number of poles
    10
    Encoder resolution
    17bit/23bit/24bit
    Insulation class
    		 F
    Degree of protection
    IP65
    Use environment
    Temperature: -20°C~+40°C (no freezing) Humidity: <90%RH (no condensation)
    Power line and brake line
    VU    W  PE
    BRK+    BRK-
     2  1  3  4
    1            2
    Absolute encoder line
    PE   E-   E+   SD-   OV   SD+   5V   /   /
    1     2     3      4      5      6         7   8   9
